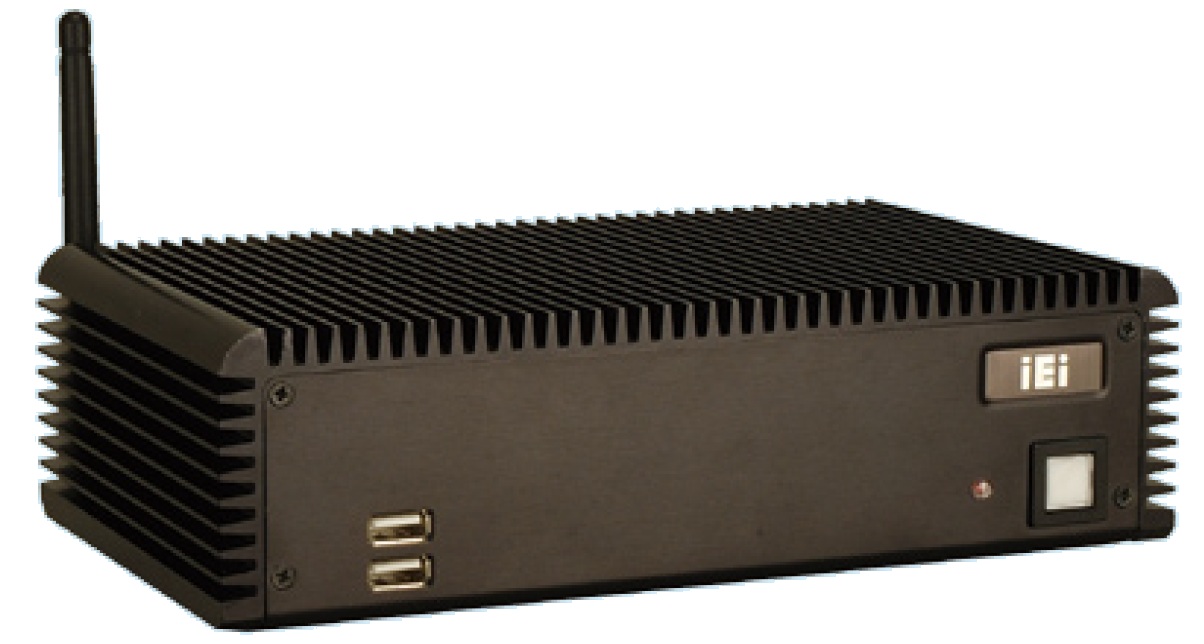

Fan-less Embedded PC - 1.8GHz CPU, ICH8M, 1GB DDR3

Fan-less Embedded PC - 1.8GHz CPU

Potrebné dokúpit len CF kartu s Embedded Windows, alebo 2,5" HDD a Windows.

Fanless system with
» 1.8 GHz Intel® Atom™ D525 dual-core CPU
Supports four USB 2.0 ports and six COM ports
Dual GbE LAN ideal for high speed network applications
Supports CompactFlash®, 2.5” SATA HDD and SSD storage devices
12 VDC and 9 VDC - 36 VDC power input models available

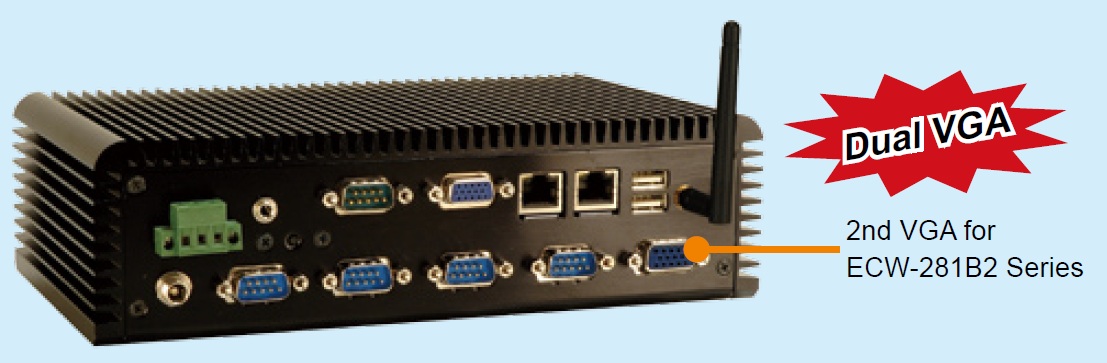

Supports dual VGA display (B2 model only)

Model No.
ECW-281B-D525
ECW-281B2-D525

Processor
Intel® Atom™ D525 Processor 1.8GHz / 1MB L2 cache

System Chipset
ICH8M

System Memory
1 x 204-pin 1GB DDR3 SODIMM (2GB for optional)

Display
1 (2) x VGA (Resolution: 2048 x 1536 @ 60Hz)

Ethernet
2 x Realtek RTL8111E PCIe GbE

USB
4 x USB 2.0

Serial Port

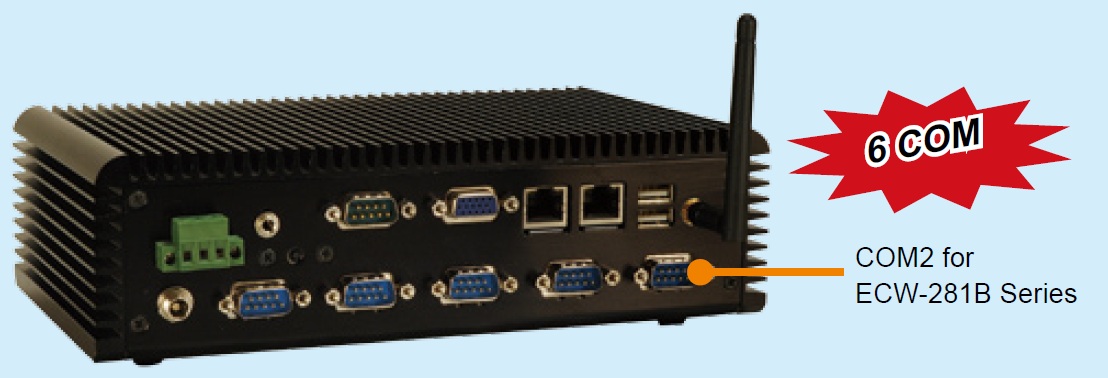

6 x RS-232 ports for ECW-281B-D525 (COM2: Default RS-232, RS422/485 optional)
5 x RS-232 ports for ECW-281B2-D525

HDD
1 x 2.5" SATA HDD space

Wireless
1 x 802.11 b/g/n

Audio
1 x Speaker out

Chassis Construction
Aluminum alloy with heavy duty metal

Operating Shock
Half sine wave 3G; 11ms 3axis

Operation Vibration
* MIL-STD-810F 514.5C-1
MIL-STD-810F 514.5C-2

Storage
1 x CompactFlash®

Expansion Slot
1 x PCIe Mini Card slot (reserved for WiFi)

Power Consumption
12V@1.79A (Intel® Atom™ D525 1.8GHz with DDR3 1GB)

Power Input
12VDC in
9-36V (WD Model)

Mounting
DIN mount, VESA 75 mount, wall mount

Operating Temperature
-20°C ~ 65°C with CF/SSD
-10°C ~ 50°C with HDD

Dimensions (DxWxH)
229mm x 132mm x 64mm

Weight (Net / Gross)
2.1kg / 3.9kg
