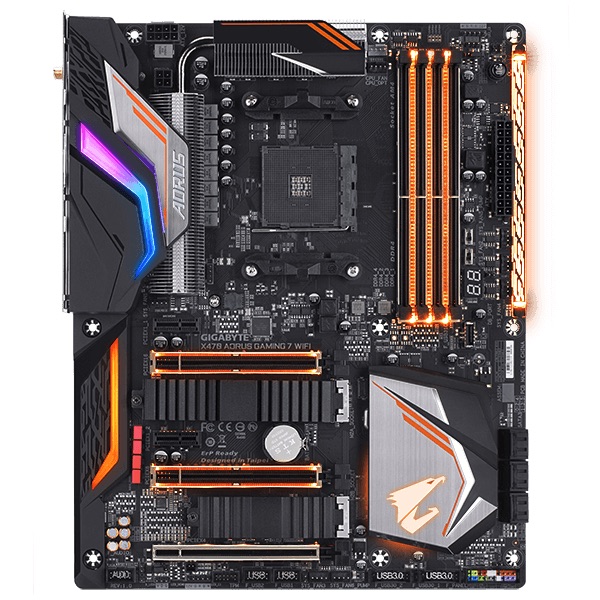

GIGABYTE X470 AORUS GAMING 7 WIFI (rev. 1.0)

Chipset: AMD X470 Revize: 1.0 Rozměrový formát: ATX Form Factor; (30.5cm x 24.4 cm) Podpora pro procesory: AMD Ryzen™ processor Patice procesoru: AM4 Pozice na paměti: 4 x DDR4 DIMM, Dual channel memory architecture Podpora pro paměti: DDR4 3600+(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Max.velikost operační paměti: 64 GB Podpora pro paměti typu: ECC, non-ECC, XMP Grafická karta: Ne Zvuková karta: Realtek® ALC1220 codec, 2/4/5.1/7.1-channel, (podpora S/PDIF Out) Síťová karta: *Intel® GbE LAN chip (10/100/1000 Mbit) *Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band *Bluetooth 5 Rozšiřující sloty: *1 x PCI Express x16 slot, running at x16 (PCI Express 3.0 standard) *1 x PCI Express x16 slot, running at x8 (PCI Express 3.0 standard) *1 x PCI Express x16 slot, running at x4 ( PCI Express 2.0 standard) *2 x PCI Express x1 slots (PCI Express 2.0 standard) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 6 x SATA 6Gb/s connectors M.2: *1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SOCKET) *1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) Firewire: Ne USB: ASMedia® USB 3.1 Gen 2 Controller: *1 x USB Type-C™ port na zadním panelu, with USB 3.1 Gen 2 support *1 x USB 3.1 Gen 2 Type-A port (red) na zadním panelu Chipset: *1 x USB Type-C™ port with USB 3.1 Gen 2 support, přes interní USB header *6 x USB 3.1 Gen 1 ports (2 ports na zadním panelu, 4 ports přes interní USB header) *6 x USB 2.0/1.1 ports (2 ports na zadním panelu, 4 ports přes interní USB header) CPU: *4 x USB 3.1 Gen 1 ports na zadním panelu Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *1 x 4-pin ATX 12V power connector *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *2 x system fan/water cooling pump headers *1 x CPU cooler LED strip/RGB LED strip header *2 x digital LED strip headers *2 x digital LED strip power select jumpers *2 x RGB (RGBW) LED strip headers *2 x M.2 Socket 3 connectors *6 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x S/PDIF Out header *1 x USB Type-C™ port, with USB 3.1 Gen 2 support *2 x USB 3.1 Gen 1 headers *2 x USB 2.0/1.1 headers *1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) *1 x Clear CMOS jumper *1 x OC button *1 x BIOS switch *1 x DualBIOS™ switch *2 x temperature sensor headers Externí porty: *1 x power/reset button *1 x Clear CMOS button *2 x MMCX antenna connectors (2T2R) *6 x USB 3.1 Gen 1 ports *1 x USB Type-C™ port, with USB 3.1 Gen 2 support *1 x USB 3.1 Gen 2 Type-A port (red) *2 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *5 x audio jacks BIOS: AMI UEFI BIOS, 2 x 128 Mbit flash
