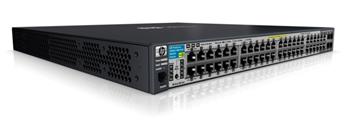

HP ProCurve 3500yl-48G-PoE+ Switch

J9311A Přehled - L2/3/4 switch s managementem - 44x PoE 100/1000 metalických portů + 4 x Combo porty + otevřený modulový slot - Podpora až 4 x SFP 10Gb portů - PoE budget: 398W, 10/100/1000 PoE+ (až 30W na port) a 10/100 PoE (až 15,4W na port) - Programovatelný ProVision ASIC: umožňuje nejnáročnější síťové funkce - Montáž do 19“ racku, na zeď, pod stůl - Doživotní záruka Charakteristika Quality of Service (QoS) Advanced classifier-based QoS, Layer 4 prioritization, Traffic prioritization, Bandwidth shaping, Port-based rate limiting, Classifier-based rate limiting, Guaranteed minimum, Class of Service (CoS), Management Remote intelligent mirroring, RMON, XRMON, and sFlow v5, IEEE 802.1AB Link Layer Discovery Protocol (LLDP), Uni-Directional Link Detection (UDLD), Management simplicity, Command authorization, Friendly port names, Dual flash images, Multiple configuration files, Comware-compatible CLI, Comware-compatible CLI, Display and fundamental Comware CLI commands, Configuration Comware CLI commands, Connectivity IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), Prestandard PoE support, Jumbo frames, Auto-MDIX, IPv6, IPv6 host, Dual stack (IPv4 and IPv6), MLD snooping, IPv6 ACL/QoS, IPv6 routing, 6in4 tunneling, Performance High-speed/capacity architecture, Selectable queue configurations, Resiliency and high availability Virtual Router Redundancy Protocol (requires Premium License), IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking, Distributed trunking, Uplink failure detect, Layer 2 switching IEEE 802.1ad Q-in-Q (requires Premium License), HP's switch meshing, VLAN support and tagging, IEEE 802.1v protocol VLANs, GARP VLAN Registration Protocol, Rapid Per-VLAN Spanning Tree (RPVST+), Layer 3 services User Datagram Protocol (UDP) helper function, Loopback interface address, Route maps, Layer 3 routing Static IP routing, Routing Information Protocol (RIP), OSPF (requires Premium License), BGP (requires Premium License), Security Access control lists (ACLs), Multiple user authentication methods, IEEE 802.1X users per port, Web-based authentication, MAC-based authentication, Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port, Virus throttling, DHCP protection, Secure management access, USB Secure Autorun (requires HP PCM+), Switch CPU protection, ICMP throttling, Identity-driven ACL, STP BPDU port protection, Dynamic IP lockdown, Dynamic ARP protection, STP Root Guard, Detection of malicious attacks, Port security, MAC address lockout, Source-port filtering, RADIUS/TACACS+, Secure Shell, Secure Sockets Layer (SSL), Secure FTP, Management Interface Wizard, Switch management logon security, Security banner, Convergence IP multicast routing (requires Premium License), IP multicast snooping (data-driven IGMP), LLDP-MED (Media Endpoint Discovery), PoE allocations, Auto VLAN configuration for voice, RADIUS VLAN , CDPv2, RADIUS VLAN , CDPv2, Warranty and support Lifetime warranty, Electronic and telephone support, Software releases, Technická specifikace Porty 1 open module slot; 44 autosensing 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 1 RJ-45 serial console port; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10BASE-T; IEEE 802.3u Type 100BASE-TX; IEEE 802.3ab 1000BASE-T Gigabit Ethernet) with PoE or an open mini-GBIC slot (for use with mini-GBIC transceivers); Supports a maximum of 4 10-GbE ports Rámování Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Paměť a procesor 10G module : ARM9 @ 200 MHz, packet buffer size: 36 Mb QDR SDRAM; Management module : Stackable memory and processor: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM Čekací doba 1000 Mb Latency: < 3.4 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.1 µs (FIFO 64-byte packets) Datový tok up to 111.5 million pps Kapacita směrování/přepínání 149.8 Gbps Rychlost přepínání podkladu 153.6 Gbps Velikost směrovací tabulky 10000 entries Funkce správy HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C) Obecné protokoly IEEE 802.1ad Q-in-Q; IEEE 802.1AX-2008 Link Aggregation; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3af Power over Ethernet; IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1350 TFTP Protocol (revision 2); RFC 1519 CIDR; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2453 RIPv2; RFC 2548 (MS-RAS-Vendor only); RFC 3046 DHCP Relay Agent Information Option; RFC 3576 Ext to RADIUS (CoA only); RFC 3768 VRRP; RFC 4675 RADIUS VLAN & Priority; UDLD (Uni-directional Link Detection) Správa sítě IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON Požadavky pro provoz a napájení Spotřeba energie 638 W (maximum) Vstupní napětí 100-127/200-240 VAC Provozní proud na vstupu 7.3/3.3 A Vstupní kmitočet 50/60 Hz Bezpečnost CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950 Kompatibilita s elektromagnetickými normami FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A Rozsah provozní teploty 0 to 55°C Rozsah provozní vlhkosti 15 to 95% @ 104°F (40°C) (noncondensing) Provozní nadmořská výška up to 4.6 km Emise akustického tlaku Power: 58.0 dB, Pressure: 42.0 dB, ISO 7779, ISO 9296 Tepelné vyzařování 1144 BTU/hr (1206.9 kJ/hr) Standardní imunita EN 55024, CISPR 24; IEC 61000-4-2; 4 kV CD, 8 kV AD; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods; EN 61000-3-2, IEC 61000-3
