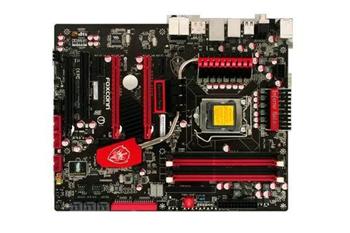

MB Foxconn Inferno Katana (1156)

MB Foxconn Inferno Katana (1156)

Processor: Intel® Core™ i7,Core™ i5 processors, Socket LGA1156
Chipset: Intel® P55
Front Side Bus:
Memory: Dual channel DDR3 1800(oc)/1600(oc)/1333 x 4 DIMMs, Max. 16GB
VGA on Die: Discreted
Expansion Slots: 3* PCIe2.0 x16, 2* PCIe2.0 x1, 1* PCI
IDE: 1*ATA133
Serial ATA(SATA)/RAID: 6* SATAII + 2*eSATA w / RAID 0, 1, 5, 10; Intel® Matrix storage technology
Audio: 7.1 channel HDA support Dolby & DTS Surround sound technology
LAN: Gigabit Lan
IEEE1394: 2*IEEE1394a
Back Panel I/O Ports: 1 x PS/2 keyboard port
1 x S/PDIF Coaxial port
1 x S/PDIF Optical port
2 x eSATA ports
1 x Clear CMOS Button
1 x Audio jack supports 6 jacks
1 x RJ45 LAN port
8 x USB 2.0 ports
1 x IEEE1394a port
Internal I/O Connectors: 1 x ATX 24-Pin power connector
1 x 8-Pin ATX 12V power connector
1 x 4-Pin CPU Fan connector
5 x 3-Pin System Fan connectors
3 x Onboard On/Off/CCMOS/Force Reset buttons
2 x S/PDIF out headers
1 x Onboard power_LED
1 x IDE connector
3 x USB 2.0 connectors support additional 6 ports
6 x SATAII connectors
1 x Front Audio Header
1 x Front Panel header
1 x Speaker header
1 x CD-in connector
1 x IEEE1394a header
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD: Drivers, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor: ATX (12" x 9.6")
