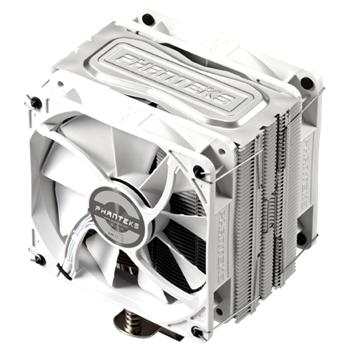

Phanteks PH-TC12DX CPU Cooler - White

Phanteks PH-TC12DX CPU Cooler - White

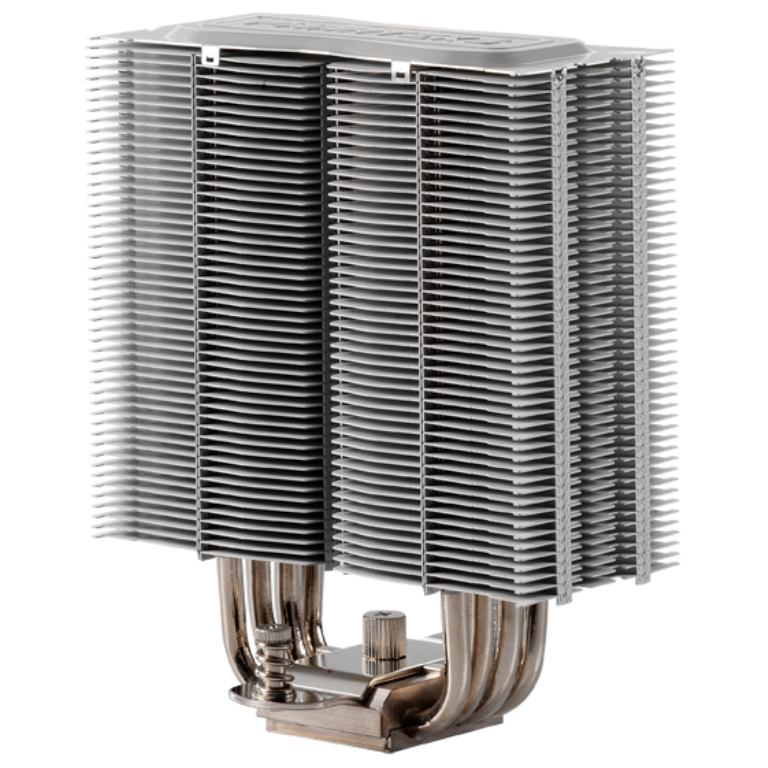

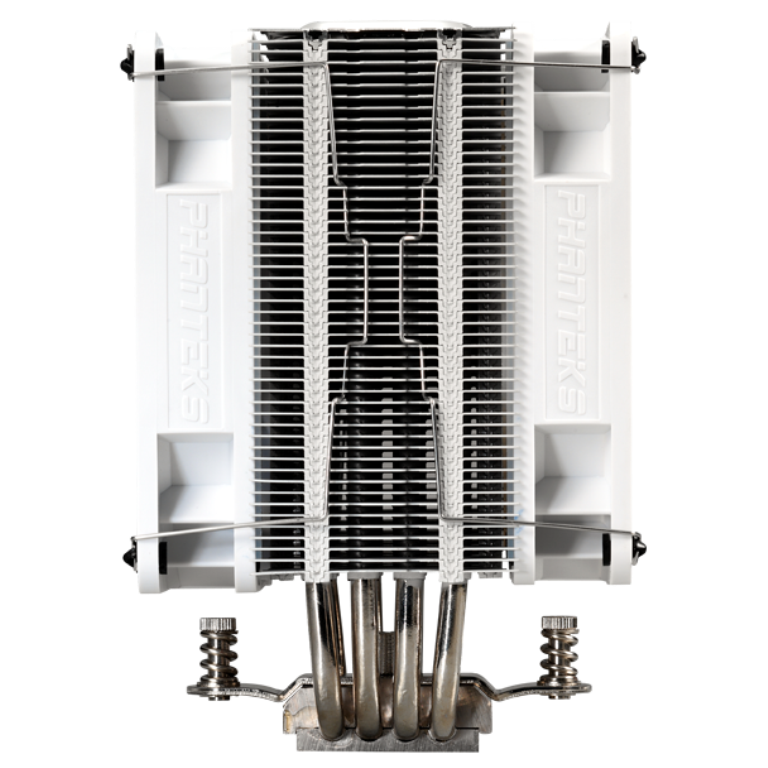

PH-TC12DX je chladič, který má duální Heat-pipy do tvaru U. Čtyři Heat-pipy o průměru 6mm se starají o dokonalý rozvod tepla skrz žebrování. Do tohoto chladiče byly začleněny i nejnovější technologije jako je P.A.T.S a C.P.S.C. O chlazení celého bloku chladiče se starají dva prémiové ventilátory o rozměrech 120mm, které lze nastavit jak pro výkon tak pro tichý provoz.

Patented. P.A.T.S (Physical Antioxidant Thermal Shield) will greatly increase the cooling performance and reliability while deflecting other thermal radiation from other heat sources, such as the GPU, South Bridge, North Bridge, etc. P.A.T.S, ran at a long period, will display significantly better results in an enclosure, closed environment, than a tech station, open environment. In extreme conditions, PATS is able to withstand temperatures of up to 200 degrees Celsius. P.A.T.S is environmental friendly and non-toxic.

Patented. C.P.S.C (Cold Plasma Spraying Coating Technology) is a brand new technologic forming deposit that displaces heat onto corresponding metals at a quicker rate. With this technology, the Phanteks PH-TC12DX enhances thermal conductivity on the soldered surfaces of the heat-pipes through the copper deposits.

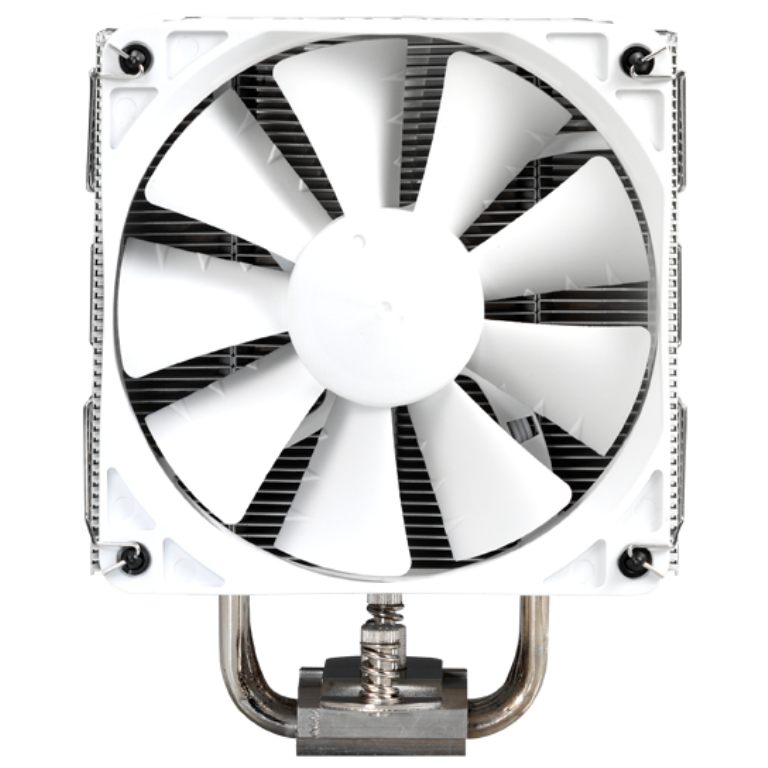

Phanteks PH-F120HP PWM Premium fans uses UFB (Updraft Floating Balance) bearing, Nine blades and MAFO (Maelstrom Air-Fort Optimization) drive system to achieve massive airflow and perfect dynamic balance.  The PH-F120HP fans with the support of the anti-acoustic rubber pad and rubber bar produces low level dB(A) and eliminates vibration. With PWM functions built in, PH-F120HP fans allows you to set speed adjustments for either performance and/or silent operation.

SoliSku universal mounting kit provides broad socket compatibilities for Intel LGA 2011/1150/1155/1156/1366/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2 (Stock back-plate required).

Phanteks PH-NDC is made of high purity Nano diamond-like particles to improve the thermal conductance between components. The PH-NDC is a superb quality thermal compound for heat-sinks. Heat generated by CPUs will transfer to the heat-sinks without reduction in efficiency and resistance.

Barva bílá
Materiál Měď (základna a Heat-pipy), Poniklovaný, Hliník (žebrování a vrchní obal)
Patented P.A.T.S (Physical Anti-Oxidant Thermal Shield)
Patented C.P.S.C (Cold Plasma Spraying Coating)
Rozměr ventilátoru 120 x 120 x 25mm
Kompatibilní ventilátory 120 x 120 x 25mm (2pcs)
Ložiska   UFB (Updraft Floating Balance) Bearing
Geometrie lopatek   Devět lopatek s  MVB(Maelström Vortex Booster) designem
Otáčky (RPM)   600 – 1800 RPM ± 10%
Max. průtok vzduchu   23 – 68.5 CFM
Max tlak vzduchu   0.39 – 2.07mm H2O
Hlučnost   21.9 – 27.6 dB(A)
Vstupní proud   2.16W
Proud (Ampere)   0.18A
Jmenovité napětí   12V
MTBF   >150,000 h
ROzměry chladiče (DxŠxV)   126 x 57 x 157mm (bez ventilátoru)   126 x 107 x 157mm (se dvěmi ventilátory)
Rozměr balení   220x163x173 (DxŠxV)

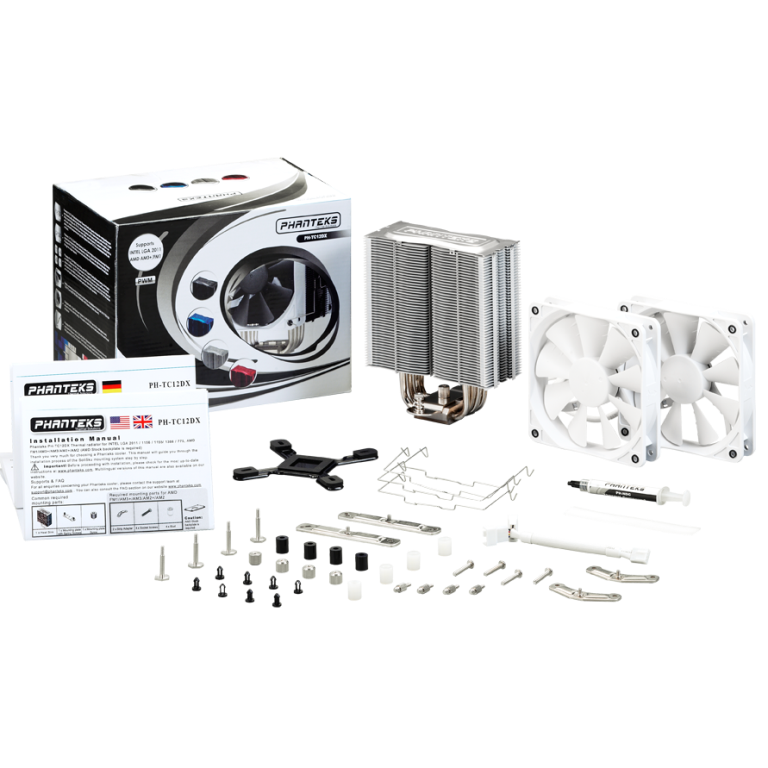

Obsah balení
1x PH-TC12DX Heatsink
2x PH-F120HP PWM Premium Fans
8x Fan Clip Adapters
4x Rubber Bar,
4x Fan wire clips (PH-F120HP Fan’s Accessories)
SoliSku Mounting Kits for Intel and AMD (Stock back-plate required)
1x Y Fan Splitter (4pin)
1x PH-NDC Thermal Compound
2x Phanteks PH-TC12DX User’s Manual
