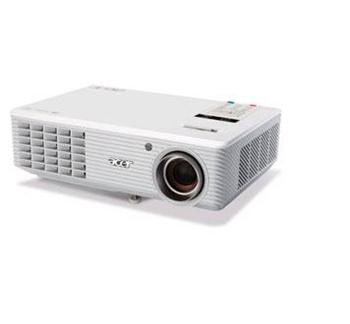

Projektor Acer DLP H5360BD

Projektor Acer DLP H5360BD

Acer H5360BD, DLP, ECO, CBII+, Zoom, 720p (1280x720), 2.2KG, 3200:1, 2500 Lumens, Bag, Auto Keystone, Blu ray 3D, (Nvidia 3D & DLP 3D), HDMI 1.4

Ideálnu vzdialenosť projektora od plátna v rôzne veľkých miestnostiach sa dozviete na adrese http://www.acer-euro.com/pjcalculator/

Specifications / Model Name Acer H5360BD
EMI/Safety Model No. H7P0010
Projection System DLP®
Display Panel 0.62" DarkChipTM 3 DMD
Resolution "Native 720p (1,280 x 720)
Maximum UXGA (1,600 x 1,200), 1080p (1,920 x 1,080)"
Computer Compatibility IBM PC and Compatibles, Apple iMac/MacBook, and VESA Standards  1080p (1,920x1,080), WSXGA+ (1,680 x 1,050), WXGA+ (1,440 x 900), WXGA (1,280 x 800, 1,280 x 768), UXGA (1,600 x 1,200), SXGA+ (1,400 x 1,050), SXGA (1,280 x 1,024), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)
Video Compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Aspect Ratio 16:9 (Native), 4:3
Contrast Ratio 3200:1
Displayable Colors 1.07 Billion Colors
Brightness 2,500 ANSI Lumens (Standard), 2,000 ANSI Lumens (ECO)
Projection Lens "F = 2.5 ~ 2.67, f = 21.86mm ~ 24.00mm
1:1.1 Manual Zoom and Manual Focus"
Projection Screen Size (Diagonal) 27" (67cm) ~ 300" (762cm)
Projection Distance 3.3' (1.0m) ~ 33.8' (10.3m)
Throw Ratio 58"@2m (1.55 ~ 1.70:1)
Horizontal Scan Rate 30k ~ 100k Hz
Vertical Refresh Scan Rate 50 ~ 120 Hz
Lamp Type Osram 200 W user replaceable P-VIP lamp
Lamp Life 3,000 Hours (Standard), 4,000 Hours (ECO)
Keystone Correction +/-40 Degrees (Vertical ), Manual & Auto
Projection Mode Front, Rear, Front-Ceiling, Rear-Ceiling
Ceiling Mounting Capability Yes
Audio One Internal Speaker with 2 watts Output
Weight 4.9 lbs (2.2 Kg)
Dimensions 268 x 192 x 80 mm (10.6" x 7.6" x 3.1")
Remote Control IR remote control
Digital Zoom 2X
PIP N/A
Lens Shift N/A
Wireless N/A
Power Supply N/A
Power Consumption N/A
Operating Temperature AC input 100~240V auto-switching power supply
Operating Humidity 248 Watts (Operation), <1 Watts (Standby)
Noise Level 5°C ~ 35°C / 41°F ~ 95°F
Uniformity 80%RH (Max.)
Input Interface 31 dBA (Standard mode), 26 dBA (ECO mode)
85%
Analog RGB/Component Video (D-sub) x 1
Composite Video (RCA) x 1
S-Video (Mini DIN) x 1
Component (3 RCA) x 1
HDMI (1.4a, Video, Audio, HDCP) x 1
PC Audio (Stereo mini jack) x 1


Output Interface




Control Interface

RS232 (Mini DIN) x 1

Network Interface



Standard Accessories

AC power cord
VGA cable
Composite video cable
Remote control
Battery for remote control
Lens cap
Carrying case
User's guide (CD-ROM)
Quick start guide
Security card
