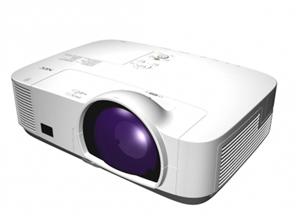

Projektor NEC LCD M300WS

Projektor NEC LCD M300WS

NEC Projektor LCD M300WS Short Throw (1280x800, 3000ANSI lm, 2000:1) 4,000h ECO, WXGA, HDMI, RJ45, VGA, S-Video,

Display 3 x 1.5 cm (0.59") p-Si LCD Panel with MLA
Native Resolution 1280 x 800 (WXGA)
Aspect Ratio 16:10
Brightness 1 3000 ANSI Lumens (approx. 75% in Eco Mode)
Contrast Ratio 1 2000:1
Lamp 260 W AC (00 W AC Eco Mode)
Lamp Life [hrs] 3500 (4000 Eco Mode)
Lens F= 2.0, f= 00 mm
Projection Factor 0.47 : 1
Projection Angle [°] 37.3 - 38.6
Screen Size (diagonal) [cm] Minimum: 152.4 / 60"; Maximum: 279.4 / 110"
Projection Distance: min. / max. [cm] 00 (00")
Zoom Digital Zoom
Focus Adjustment Manual
Supported Resolutions 1440 x 900 (WXGA+); 1600 x 900 (WXGA++); 1680 x 1050
(WSXGA+); 1152 x 870 (MAC 21"); 720 x 576 (DVD progressive);
720 x 480 (SDTV 480p); 640 x 480 (VGA/MAC 13"); 832 x 624 (MAC
16"); 800 x 600 (SVGA); 1280 x 1024 (MAC 23"); 1280 x 1024
(SXGA); 1280 x 720 (HDTV 720p); 1280 x 768 (WXGA); 1280 x 800
(WXGA); 1280 x 960 (SXGA); 1400 x 1050 (SXGA+); 1360 x 768
(WXGA); 1366 x 768 (WXGA); 1024 x 768 (XGA); 1152 x 864
(XGA); 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1600 x 1200
(UXGA); 1280 x 1024 (Maximum resolution of digital input); 720 x
576 SDTV 480p/480i; 720 x 480 SDTV 576p/576i
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120
Hz
CONNECTIVITY
RGB (analog) Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
Video Input: 1 x RCA
HDMI™ Input: 1x HDMI® (Deep Color, Lip sync)
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 2 x 3.5 mm Stereo Mini Jack; Input: 2 x RCA Stereo; Output: 1
x 3.5 mm Stereo Mini Jack (variable)
PC Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45
USB 2 x Type A (USB 2.0 high speed); 1 x Type B
Video Signals PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-M
REMOTE CONTROL
Remote Control Source Select; Freeze-function; Auto Adjust; Aspect Ratio; Automatic
Picture Adjustment; Magnify-function; Optional Presentation and
Mouse Control; Lamp Mode Control; Picture Adjust; Audio Control;
Picture Mute; Picture Mode; Freeze; Help Eco Mode; Digital Zoom;
Presentation and Mouse Control; AV Mute; ID set
ELECTRICAL
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 302 (Normal) / 236 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by)
MECHANICAL
Dimensions (W x H x D) [mm] 398 x 152 x 309.5 (without lens and feet)
Weight [kg] 4.0
Fan Noise [dB (A)] 31 / 37 (Eco / Normal)
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80
OPTIONAL ACCESSORIES
Optional Accessories Lamp (NP17LP); Wireless LAN module (NP02LM2); Wall Mount Kit
(NP02WK)
ERGONOMICS
Safety and Ergonomics CE; TÜV GS; RoHS; Gost-R
Speakers [W] 1 x 10 (mono)
WARRANTY
Projectors 3 years pan-European service
Lamp 6 months, max. 1000 hrs
SHIPPING CONTENT
Shipping Contents IR Remote Control (RD-448E); Mini D-SUB Signal Cable; Power
Cord (1.8 m); Security Sticker; Users Manual on CD-ROM; Quick
Setup Guide; Lens Cap
