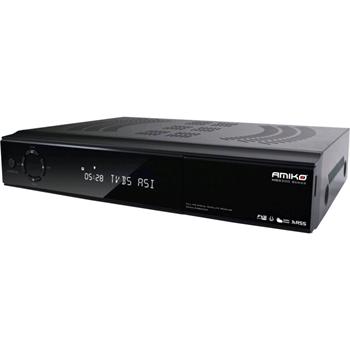

Satelitný prijímač AMIKO SHD-8360

- MPEG-Fully DVB-S / DVB-S2 (H.264) HD compliant
- Conax Embedded with Common Interface
- 5000 channels (TV and Radio) programmable
- Two High Speed USB 2.0 Connections
- Ethernet & USB WiFi Support (Ralink RT5370 chip only)
- YouTube videos
- RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
- Optical & Coaxial S/PDIF for digital audio or Dolby digital Bit-Stream output
- DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
- Full HD (1080p) Output via HDMI
- Channel Recording to External Storage Devices
- Timeshift support
- Channel Recording & Timeshifting Simulteniously (optional)
- Channel switching time less than 1 second
- True-color, User Friendly On-Screen Display (OSD)
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG) for on screen channel information
- Subtitle supported
- Teletext supported by VBI insertion and software emulation
- Parental lock facility by channel and program event
- Program and Channel information transfer from receiver to receiver
- Exciting games embedded
- Multi-Language support
- Alphanumeric VFD Display
- RTC (Real-Time-Clock)
- Power Consumption in Stand-By:

Technical specification:
Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max.: 500mA Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
Audio Decoding: MEPG-1 layer I/II, Mpeg2 layerII, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz System Resources
Main Processor: 400MHz based CPU
Flash Memory: 64MBits
DDR RAM: 1024Mbits

Power Supply
Input Voltage: Free Voltage (100-250V AC 50/60Hz)
Power Consumption: 24W Max

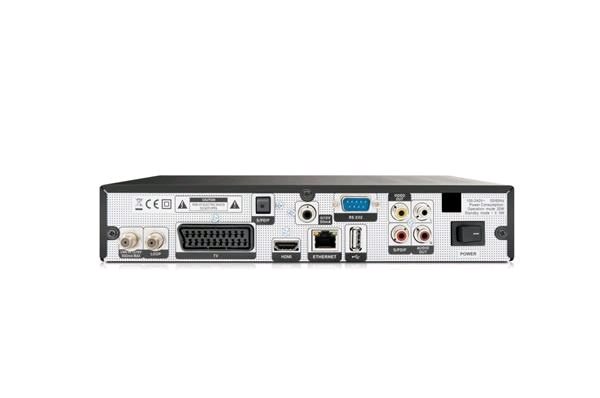

A/V & Data Input/Output
TV-SCART: Video CVBS/RGB output, Audio L/R output
RCA A/V: Video CVBS output, Audio L/R output
S/PDIF: Optical & Coaxial, Digital Audio or Dolby Digital Bit Stream Output
RS-232C: Transfer rate 115.2Kbps, 9 pin D-sub Type
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A,
Ethernet: 10/100M RJ45

Physical Specifications
Size[W*H*D]: 260mm*40mm*140mm
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
