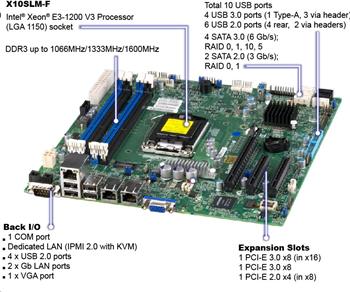

Supermicro MB Xeon E3-1200V3 X10SLM-F C224 2xGLAN RAID

Supermicro MB Xeon E3-1200V3 X10SLM-F C224 2xGLAN RAID

1. Single socket H3 (LGA 1150) supports
   Intel® Xeon® E3-1200 v3, 4th gen.
   Core i3, Pentium, Celeron processors
2. Intel® C224 Express PCH
3. Up to 32GB DDR3 ECC 1600MHz
   UDIMMs in 4 sockets
4. Dual Gigabit Ethernet LAN ports
   (1x Intel® i217LM & 1x Intel® i210AT)
5. 2x SATA (3Gbps), 4x SATA (6Gbps)
6. 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0
   x8, and 1x PCI-E 2.0 x4 (in x8) slots
7. 4x USB 3.0 (1 Type-A, 2+1 via header)
   6x USB 2.0 (4 rear, 2 via header)
8. Integrated IPMI 2.0 with KVM and
   Dedicated LAN
9. SATA DOM power connector support
10. VGA D-sub connector, TPM header
11. Support Intel Node Manager

Product SKUs

MBD-X10SLM-F X10SLM-F (Bulk Pack)

Physical Stats

Form Factor uATX
Dimensions 9.6" x 9.6", (24.4cm x 24.4 cm)

Processor/Cache

CPU Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron processors
Single Socket H3 (LGA 1150)

System Memory

Memory Capacity 4x 240-pin DDR3 DIMM sockets
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5V, 1.35V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset Intel® C224 Express PCH
SATA SATA3 (6Gbps) w/ RAID 0, 1, 10, 5
SATA2 (3Gbps) w/ RAID 0, 1
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2400 with 10/100/1000M bps MAC
Network Controllers Intel® i217LM + Intel® i210AT Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
VGA BMC integrated Aspeed AST2400

Input / Output

Serial ATA 4x SATA3 (6Gbps) ports
2x SATA2 (3Gbps) ports
LAN 2x Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB 4x USB 3.0 ports (1 Type-A, 2+1 via header)
6x USB 2.0 ports (4 rear, 2 via header)
VGA 1x VGA D-Sub Connector
Serial Port / Header 2x COM ports (1 rear, 1 header)
DOM SATA DOM (Disk on Module) power connector support
TPM 1x TPM 1.2 20-pin Header
Expansion Slots

PCI-Express 1x PCI-E 3.0 x8 (in x16) slot
1x PCI-E 3.0 x8 slot
1x PCI-E 2.0 x4 (in x8) slot

System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features DMI 2.3
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3

Management

Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
SuperDoctor® III
Watch Dog
NMI
Power Configurations ACPI / ACPM Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on

PC Health Monitoring

Voltage Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN Total of five 4-pin fan headers supporting up to 5 fans
5x fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED CPU / System Overheat LED
+5V Standby alert LED
Other Features Chassis intrusion detection
Chassis intrusion header
