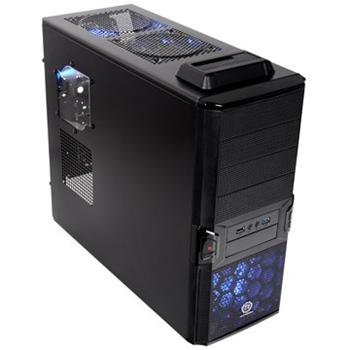

THERMALTAKE VL800M1W2N V3 BlacX Edition / Docking station

THERMALTAKE VL800M1W2N V3 BlacX Edition / Docking station

Features

- Top-mounted HDD Docking Station enables blazing fast file transfer and effortless hot-swap capability
- Bottom-placed PSU design for easy installation
- Metal mesh front bezel for maximum air intake
- Built-in filter in 5.25” drive bay and PSU to keep dust away
- USB 3.0 SuperSpeed

CPU Air Cooling System

120mm x 1 (Optional)
1. Top (exhaust) : 120 x 120 x 25 mm fan
120mm x 1
4. Rear (exhaust) : 120 x 120 x 25 mm Blue LED Fan

HDD Air Cooling System

120mm x 1 (Optional)
2. Front (intake) : 120 x 120 x 25 mm fan

VGA Air Cooling System

120mm x 1 (Optional)
3. Bottom (intake): 120 x 120 x 25 mm fan

P/N VL800M1W2N
Case Type Middle Tower

Side Panel Transparent Window

Net Weight 4.8 kg / 10.6 lb

Dimension D473.0 x W190.0 x H445.6 mm
(18.6 x 7.5 x 17.5 inch)

Cooling System Front (Intake) : 120 x 120 x 25 mm (optional)
Rear (Exhaust) : 120 x 120 x 25 mm Blue LED fan, 1000rpm, 16dBA
Top (Exhaust) : 120 x 120 x 25 mm (optional)
Bottom (Intake) : 120 x 120 x 25 mm (optional)

Drive Bays - Accessible: 3 x 5.25’’, 1 x 3.5’’
- Hidden: 4 x 3.5’’, 1 x 2.5”
- HDD Docking: 1 x 3.5” or 1 x 2.5”

Material SECC

Color Exterior & Interior: Black

Expansion Slots 7

Motherboards Micro ATX , Standard ATX

I/O Ports USB3.0 x 1, USB2.0 x 1, MIC & Speaker (support AC’97 & HD Audio)

PSU Standard ATX PS2 (optional)

Other CPU cooler height limitation: 160mm
VGA length limitation: 263mm
