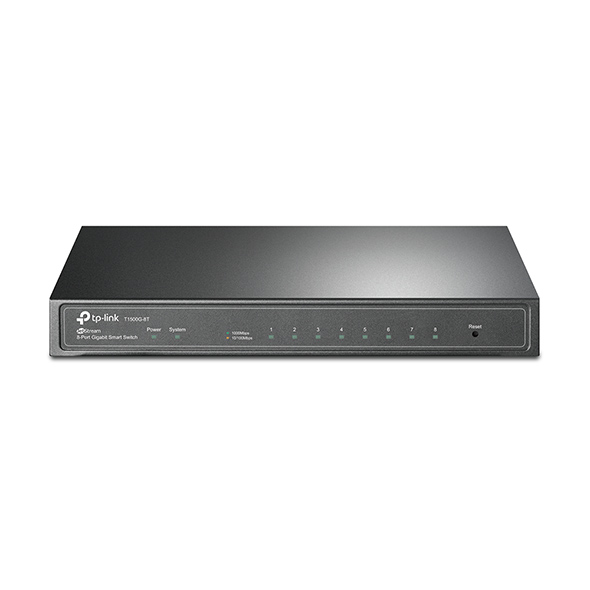

TP-Link T1500G-8T

JetStream 8-Port Gigabit Smart Switch T1500G-8T (TL-SG2008) Popis *PoE Port8 kompatibilní s protokolem 802.3af umožňuje příjem napájení z zdroje PoE *Gigabit Ethernet na všech portech zajišťuje plnou rychlost přenosu dat *Pokročilé funkce zabezpečení zahrnují IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X a Radius Authentication *L2 / L3 / L4 QoS a IGMP snooping optimalizují hlasové a video aplikace *WEB / CLI řízené režimy, SNMP, RMON přinášejí bohaté funkce správy *Dual Firmware Image zvyšuje spolehlivost a čas potřebný pro připojení k síti Technická specifikace HARDWARE FEATURES Standards and Protocols *IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p Interface *8 10/100/1000Mbps RJ45 Ports *Port8 obtain power from PoE source *(Auto-Negotiation/Auto MDI/MDIX) Network Media *10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) *100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity *Fanless Power Supply *100~240VAC, 50/60Hz *External Power Adapter(Output: 12VDC/1A) *Obtain power from PoE source Power Consumption *Maximum: 5.75W (220V/50Hz) PD Port (RJ45) *Port8 IEEE802.3af/at Dimensions ( W x D x H ) *209 * 126 * 26mm PERFORMANCE Bandwidth/Backplane *16Gbps Packet Forwarding Rate *11.9Mpps MAC Address Table *8K Jumbo Frame *9216 Bytes SOFTWARE FEATURES Quality of Service *802.1p CoS/DSCP priority *4 priority queues *Queue scheduling: SP, WRR, SP+WRR *Port/Flow- based Rate Limiting *Voice VLAN L2 Features *IGMP Snooping V1/V2/V3 *802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) *Spanning Tree STP/RSTP/MSTP *BPDU Filtering/Guard *TC/Root Protect *Loop back detection *802.3x Flow Control *LLDP, LLDP-MED VLAN *Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) Access Control List *L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports Security *Port Security *DHCP Snooping *IP-MAC-Port Binding *ARP Inspection *802.1x and Radius Authentication *SSH v1/v2 *SSL v3/TLSv1 *Broadcast/Multicast/Unknown-unicast Storm Control *Dos Defend Management *Web-based GUI *Command Line Interface(CLI) through telnet *SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private *MIBs *RMON (1, 2, 3, 9 groups) *CPU Monitoring *Port Mirroring *Time Setting: SNTP *Firmware Upgrade: TFTP & Web *System Diagnose: VCT *SYSLOG & Public MIBS *Dual Image OTHERS Certification *CE, FCC, RoHS Package Contents *T1500G-8T *Power Adapter *Installation Guide *Resource CD *Rubber Feet System Requirements *Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. Environment *Operating Temperature: 0?~40? (32?~104?); *Storage Temperature: -40?~70? (-40?~158?) *Operating Humidity: 10%~90% non-condensing *Storage Humidity: 5%~90% non-condensing
