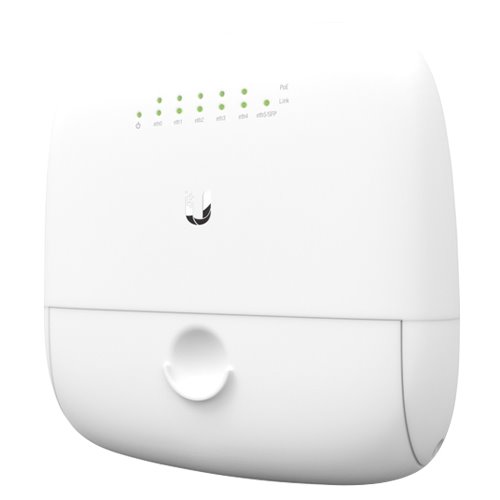

Ubiquiti EdgePoint R6

Ubiquiti EdgePoint R6

EP-R6
Dimensions 188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96")
Weight 605 g (1.33 lb)
Enclosure Characteristics Polycarbonate with UV Resistance
Max. Power Consumption 7W (Excludes PoE Output)
Power Input (1) DC Terminal Block
or
(1) RJ45 (eth0)
(Self-Correcting Polarity Protection on DC Terminal Block Only,
Diode ORed Protection on All Power Inputs)
Power Supply Min. 24V / 0.3A (Excludes PoE Output Power)
VDC Input 24V, 3A
Passive PoE Input (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
(Do NOT Configure eth0 in PoE Output Mode
if You Are Using a PoE Input Power Source.)
Passive PoE Output (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
Power Monitoring (1) DC Terminal Block, Input Power
(1) RJ45, eth0, Input Power
Supported Voltage Range 26 to 16VDC
Button Reset
LEDs
System
eth0 to eth4
eth5/SFP
Power
Speed/Link/Activity, PoE
Speed/Link/Activity

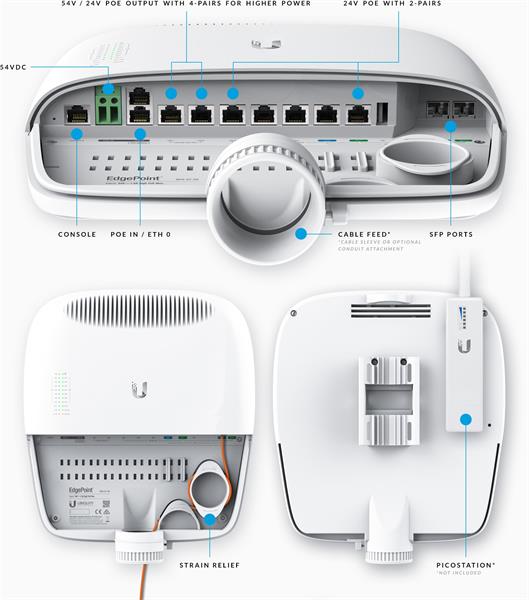

Ports
Data Ports (5) 10/100/1000 RJ45 Ports
(1) 1 Gbps SFP Port
Processor Dual-Core 880 MHz, MIPS1004Kc
System Memory 256 MB DDR3-1600 RAM
Code Storage 256 MB NAND
Certifications CE, FCC, IC

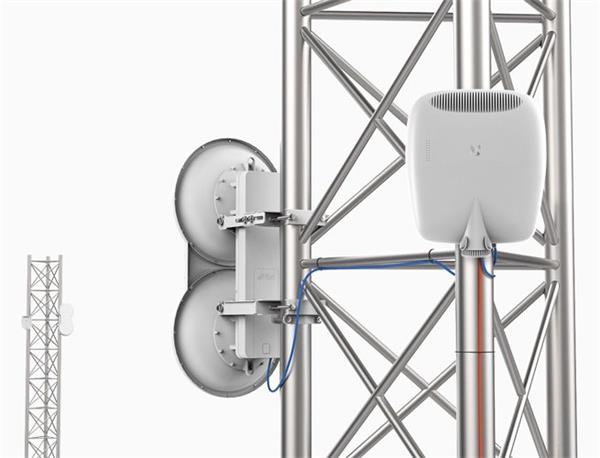

Pole Mount Yes
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 to 90% Noncondensing
