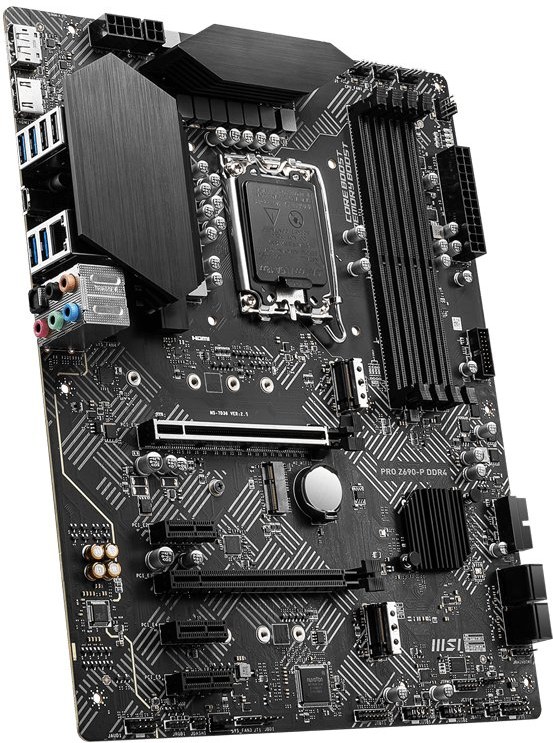

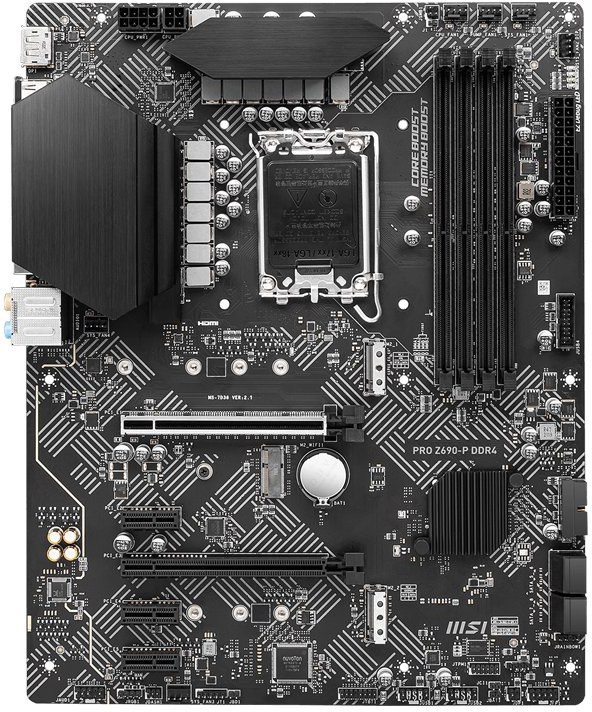

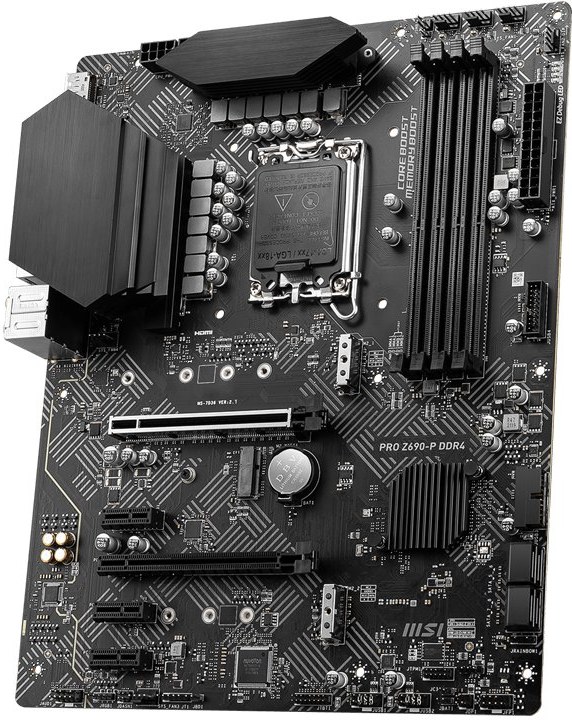

PRO Z690-P DDR4
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 5000+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and MOSFET thermal pads rated for 7W/mk are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
High Quality PCB: 6-layer PCB and server grade level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors*
Processor socket LGA1700
*Please go to msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® Z690 Chipset
MEMORY
4x DDR4 memory slots, support up to 128GB*
Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
*Please refer www.msi.com for more information on compatible memory
EXPANSION SLOT
2x PCIe x16 slots
PCI_E1 slot (From CPU)
Support PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support PCIe 3.0 x4
3x PCIe 3.0 x1 slots (Fom Z690 chipset)
1x M.2 slot with E key for Intel® Wireless-AX CNVi and PCIe WiFi module
ONBOARD GRAPHICS
1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz*/**
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.
MULTI-GPU
Supports AMD CrossFire™ Technology
STORAGE
4x SATA 6Gb/s ports (From Z690 chipset)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Memory
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
Intel® Z690 Chipset
8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors)
6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors)
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
AUDIO
Realtek®ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® RTL8125BG 2.5Gbps LAN controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector (PWM mode only)
1x 4-pin water-pump fan connector (PWM mode only)
4x 4-pin system fan connectors (PWM mode only)
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (Supports RTD3)
LED FEATURE
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
4x EZ Debug LED
BACK PANEL PORTS
DisplayPort
HDMI
USB 2.0
LAN port
Audio Connectors
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 1 5Gbps Type-A
Optical S/PDIF Out

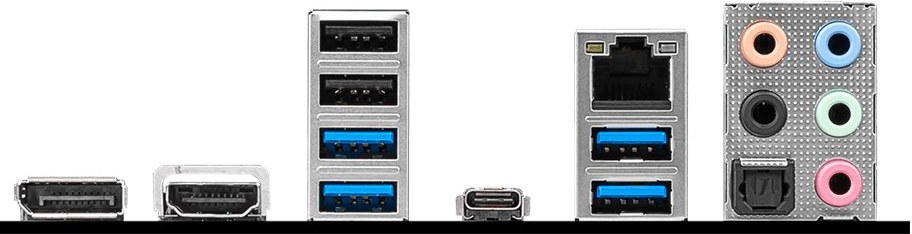

PRO Z690-P DDR4 back panel ports
DIMENSIONS
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
