Phanteks PH-TC14CS CPU Cooler - Silver

Phanteks PH-TC14CS CPU Cooler - Silver

Phanteks PH-TC14CS je jednoduchý chladič do tvaru C s použitím nejnovější letecké technologie pro lepší proudění vzduchu. Do tohoto chladiče byly začleněny i další nejnovější technologije jako je P.A.T.S a C.P.S.C. Je vhodný pro přetaktování díky výborné tepelné kapacitě a kombinaci se dvěma prémiovými ventilátory Phanteks PH-F140TS s funkcí PWM, které lze nastavit pro maximální výkon nebo tichý provoz.

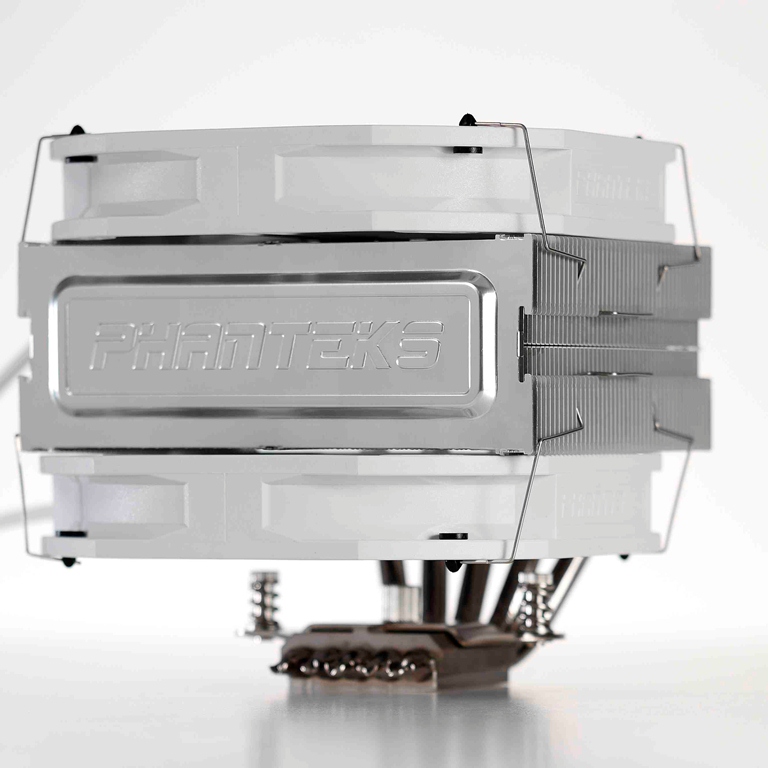

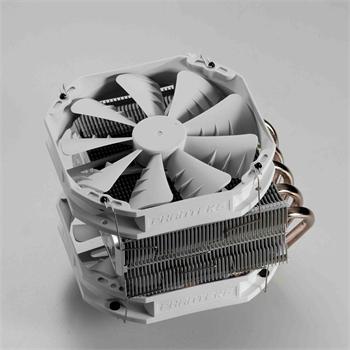

Phanteks PH-TC14CS, a single tower C-Type thermal radiator design using the latest aerospace technology. By incorporating P.A.T.S and C.P.S.C Technologies to the design, PH-TC14CS enhances thermal conductivity and creates an opportunity for greater overclocking. Combined with two Phanteks PH-F140TS Premium Fans with PWM functionality, max performance or silent operation is attainable.

Greatly increase the cooling performance and reliability while deflecting other thermal radiation from other heat sources, such as the GPU, South Bridge, North Bridge, etc. P.A.T.S, ran at a long period, will display significantly better results in an enclosure, closed environment, than a tech station, open environment. In extreme conditions, PATS is able to withstand temperatures of up to 200 degrees Celcius. P.A.T.S is environmental friendly and non-toxic.

A brand new technologic forming deposit that displaces heat onto corresponding metals at a quicker rate. With this technology, the Phanteks PH-TC14CS enhances thermal conductivity on the soldered surfaces of the heat-pipes through the copper deposits.

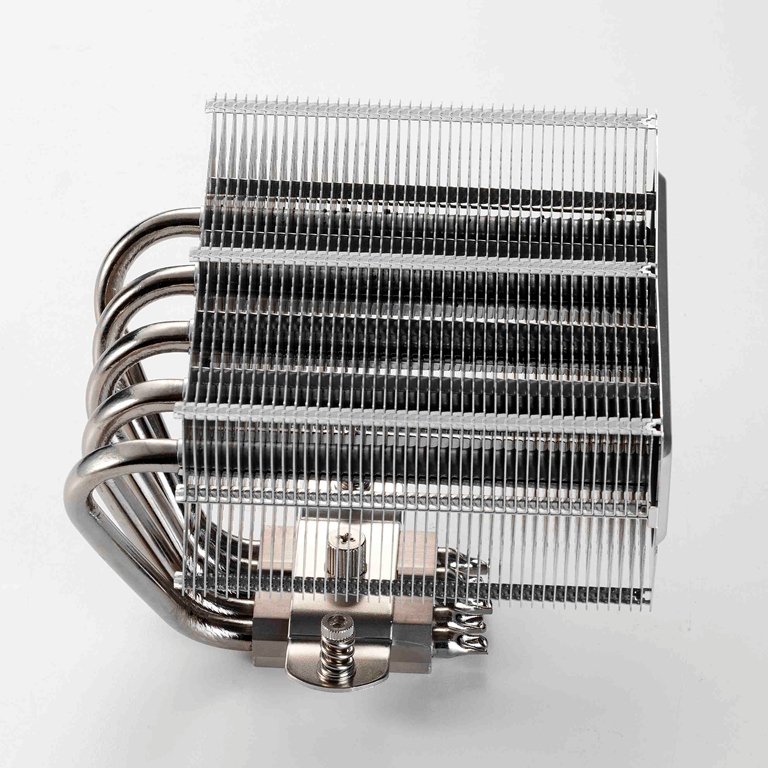

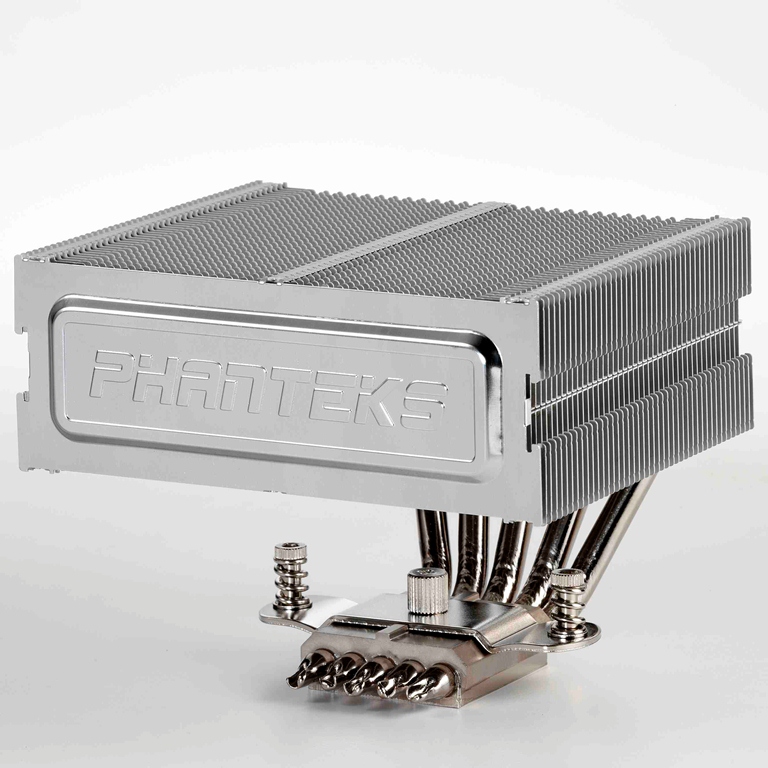

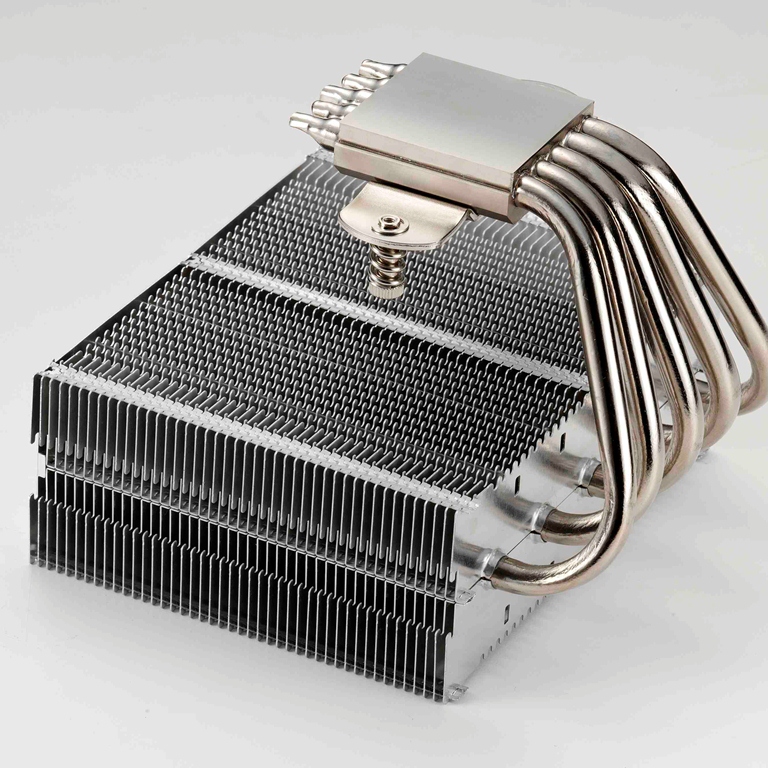

Designed with C type Single tower radiator; the PH-TC14CS has five?8mm heat-pipes linearly aligned to ensure optimal cooling. This cooler is made to have the least amount of air and thermal resistance.

Phanteks PH-F140 premium 140mm fans uses Updraft Floating Balance (U.F.B) bearing, nine Maelstrom Vortex Booster (M.V.B) blades, and Maelstrom Air-Fort Optimization (M.A.F.O) drive system to achieve massive airflow and perfect dynamic balance. to reduce noise level, the fan emits a low dBA with the support of the anti-acoustic rubber-pad and rubber-bar to help eliminate vibration.

The SoliSku universal mounting kit provides an easy-to-install rotational backplate for Intel LGA 2011/1155/1156/11366/775. AMD FM1/AM3+/AM3/AM2+/AM2 ( stock backplate required ).

The PH-NDC is a superb quality thermal compound for heatsinks. It is made of high-purity nano diamond like particles to improve the thermal conductance between components. The generated heat caused by the CPU will transfer to the heatsink, without reduction in efficiency and resistance.

Kompatibilita   Intel Socket: LGA 2011/1155/1156/1366/775
                        AMD: FM1/FM2/AM3+/AM3/AM2+/AM2 (stock back-plate required)
Barva   stříbrná
Material
- Měď (Základna a Heat-pipy), Poniklované
- Hliníková chladící žebra s patentovanou technologií P.A.T.S. a C.P.S.C
Model ventilátoru   PH-F140 Premium Fan s PWM Adapterem
Rozměry ventilátoru   140 x 140 x 25mm
Kompatibilní ventilátor   140 x 140 x 25mm (2ks), 120 x 120 x 25mm (2ks)
Ložiska   UFB (Updraft Floating Balance) Bearing
Geometrie lopatek   Devět lopatek s  MVB(Maelström Vortex Booster) designem
Otáčky (RPM)   1300 ± 10%
Max průtok vzduchu   88.6 CFM
Max tlak vzduchu   1.37mm H2O
Hlučnost   19.6 dB (A)
Otáčky s  PWM Adapterem   700 – 1200 RPM ± 10%
Max průtok vzduchu s PWM Adapterem   45.1 – 78.1 CFM
Max tlak vzduchu PWM Adapterem   0.45 – 1.21mm H2O
Hlučnost s PWM Adapterem   13.4 – 19 dB (A)
Vstupní proud   2.8 W
Proud (Ampere)   0.24 A
Jmenovité napětí   12V
MTBF   >150,000 h
Rozměry chladiče bez ventilátoru   143.8 x 140 x 112mm (DxŠxV)
Rozměry chladiče s jedním ventilátorem   160 x 151 x 112mm (DxŠxV)
Rozměry chladiče se dvěma ventilátory   160 x 151 x 140.5mm (DxŠxV)
Hmotnost s ventilátorem   600g
Hmotnost bez ventilátoru   750/900g (jeden/dva)
Rozměry balení   167 x 214 x 190mm (DxŠxV)

Obsah balení
.1x PH-TC14CS_RD Heatsink
.2x PH-F140TS Premium Fans
.SoliSku Mounting Kits for Intel LGA 2011/1155/1156/1366/775 and AMD FM1/AM3+/AM3/AM2+/AM2 (nutný stock back-plate)
.1x PWM External Adapter(Pulse Width Modulation)
.1x Hex Wench
.1x Y-Fan Splitter
.1x PH-NDC Thermal Compound
.Phanteks PH-TC14CS User’s Manual (English/Spanish and German/French)

PH-F140 Fan příslušenství
.4x Rubber Bars
.8x Fan Clip Adapters
.4x Fan Wire Clip
