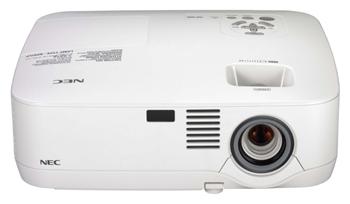

Projektor NEC NP305

Projektor NEC NP305

NEC NP305 Specifications
Category Micro Projectors
Manufacturer NEC (Click for rest of range)
NEC NP305 Optical Features
System 3*0.63" p-Si LCD with MLA
Resolution XGA (1024*768)
Aspect Ratio 4:3
ANSI Lumens 2200
ECO Mode Lumens 1760
Contrast 600:1
Lamp 210W AC
Lamp Life 4000hrs. (5000hrs. ECO mode)
Lens F= 1.7–2.0, f= 19.8–23.7mm
Interchageable No
Image Size 21-300" diagonal (Click for Chart)
Throw Distance 0.70-11.00m
Throw distance for 100" image 3.05 - 3.66m
Lens Shift No
Keystone Correction +/-30° (Vertical)
NEC NP305 Compatibility
Computer Resolutions VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WXGA+, WXGA
Video PAL,SECAM,NTSC,NTSC4.43,PAL-M/N
HDTV 1080i, 720p, 576i/576p, 480i/480p
Horizontal Freq. 15-100kHz
Vertical Freq. 50-120Hz

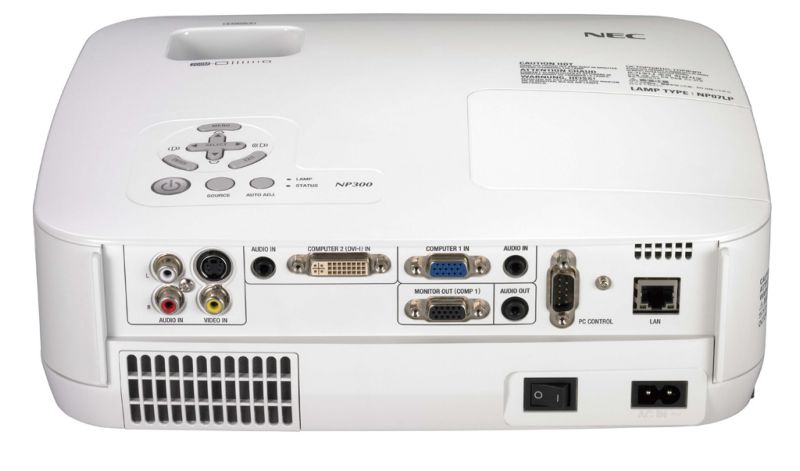

NEC NP305 Terminals
DVI 1 (HDCP Compliant)
HDMI No
VESA M1 No
RGBHV (15-pin HD) 1
RGBHV (BNC/RCA) No
Component No
S-Video 1
Composite 1
SDI No
HD-SDI No
Monitor Out Yes
Audio In 3
Audio Out 1
USB No
RS-232 1
Network Ready Yes
Wireless Network No
NEC NP305 General
Speakers 1*7w mono
Remote Control NEC NP305 only
Noise 35db (29db ECO mode)
Dimensions 308*94*262mm (W*H*D)
Weight 2.98kg
Power Supply 200-240V AC, 50-60Hz
Power Consumption 255Watts
Warranty 3 year loan support (6 months on lamp)
NEC NP305 Package Contents
Accessories IR Remote Control (RD-427E)
Mini D-SUB Signal Cable
Power Cord (4.5 m)
Soft Case
DVI-VGA Adapter
Users Manual on CD-ROM
Quick Setup Guide
Lens Cap
