Popis produktu

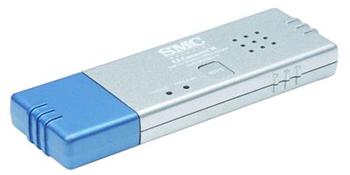

SMC Wireless-N 802.11b/g/n USB 2.0 adapter (300Mbps)
SMC 300Mbps Wireless USB2.0 Adapter (802.11b/g/n-draft 2.0) - SMCWUSB-N2EZ Connect™ N Draft 11n Wireless USB2.0 Adapter (SMCWUSBS-N) představuje další technologický pokrok pro 2,4GHz bezdrátovou komunikaci Vašeho stolního počítače nebo notebooku. Tento bezdrátový USB2.0 adaptér, navržený pro využití v domácnosti i kanceláři, poskytuje rychlost až 300Mbps,zvýšení pokrytí a bezpečnost na úrovni podnikové třídy WPA/WPA2.
The EZ Connect™ N Draft 11n Wireless USB2.0 Adapter (SMCWUSBS-N) enables Wireless-N connectivity to your desktop or notebook computer and provides improved throughput and range than existing 802.11g technology. Upgrading to Wireless-N is an excellent solution for browsing the Internet and sharing files such as video, music and photos. The SMCWUSBS-N is Wi-Fi CERTIFIED™ for full compliance with the 802.11n draft v2.0 standard, as well as the popular Wireless-G (802.11g) and Wireless-B (802.11b) standards. This next generation standard utilizes advanced MIMO (Multiple-In, Multiple-Out) technology to deliver incredible speed and range. With security being a key consideration, the latest WPA and WPA2 wireless encryption standards are supported, which prevent unauthorized access to wireless networks and ensure data is secure. Wireless security can also be set up easily using Wi-Fi Protected Setup™ (WPS) that enables push button or PIN configuration.
PHYSICAL
• Link/Activity status LED
• WPS Auth status LED
• WPS push button
WIRELESS OPERATING MODES
• Ad-hoc mode
• Infrastructure mode
• Soft AP mode
EASE OF USE
• EZ Installation Wizard
• Wi-Fi Protected Setup™ - PBC and PIN
• Site survey utility
• Profi le manager
SECURITY FEATURES
• WEP 64-/128-Bit Encryption
• WPA-/WPA2-PSK (Pre Shared Key)
• WPA/WPA2 Enterprise mode (802.1x)
• Access Control (Soft AP mode only)
QUALITY-OF-SERVICE (QoS)
• WMM (Wi-Fi Multimedia)
STANDARDS
• IEEE802.11b, IEEE802.11g, IEEE802.11n draft v2.0
OPERATING FREQUENCY
• USA - FCC: 2412~2462MHz (Ch1~Ch11)
• Canada – IC: 2412~2462MHz (Ch1~Ch11)
• Europe - ETSI: 2412~2472MHz (Ch1~Ch13)
TYPICAL RF OUTPUT POWER
• 11n Mode: 14.5dBm +/- 1dBm
• 11g Mode: 14.5dBm +/- 1 dBm
• 11b Mode : 17.5dBm +/- 1dBm
TEMPERATURE
• Operating: -10 degrees C to 50 degrees C
• Storage: -10 degrees C to 70 degrees C
HUMIDITY
• Storage: 5% to 90% Non-condensing
• Operating: 0% to 70% Non-condensing
DIMENSIONS
• 82 x 26 x 11 mm
• 3.23 x 1.02 x 0.43 in
WEIGHT
• 0.016Kg
• 0.035lbs
CERTIFICATIONS
• FCC
• CE
SYSTEM REQUIREMENTS
• 2.4 GHz 802.11n draft wireless network or 2.4 GHz 802.11b/g wireless
network
• Microsoft Windows 2000 , XP or Vista
• A Notebook or Desktop computer with:
• 300MHz CPU or above
• Available USB2.0 port
• 20MB of available hard disk space
• CD-ROM drive
• We recommend using this product with SMC’s Barricade™ N Routers
PACKAGE CONTENTS
• EZ Connect™ N Wireless USB2.0 Adapter (SMCWUSBS-N)
• EZ Installation Wizard & Documentation CD
• Quick Installation Guide
• Warranty Information Card
WARRANTY
• Limited Lifetime
