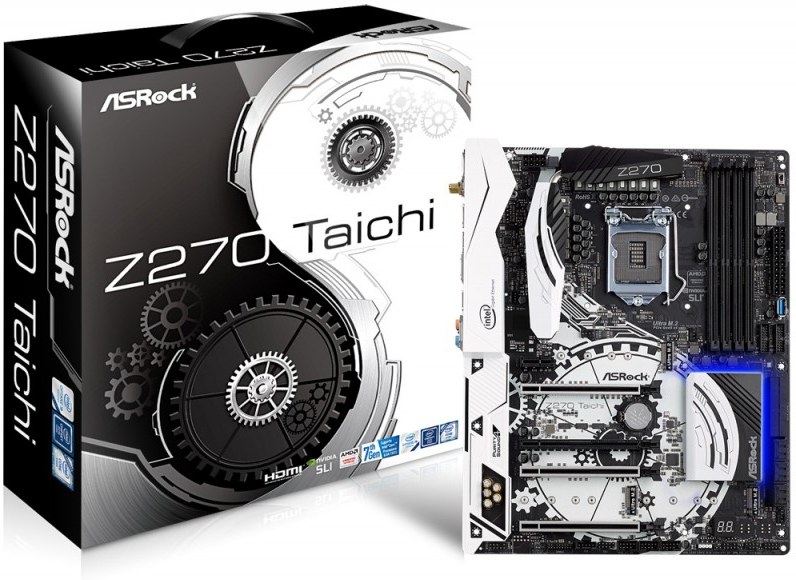

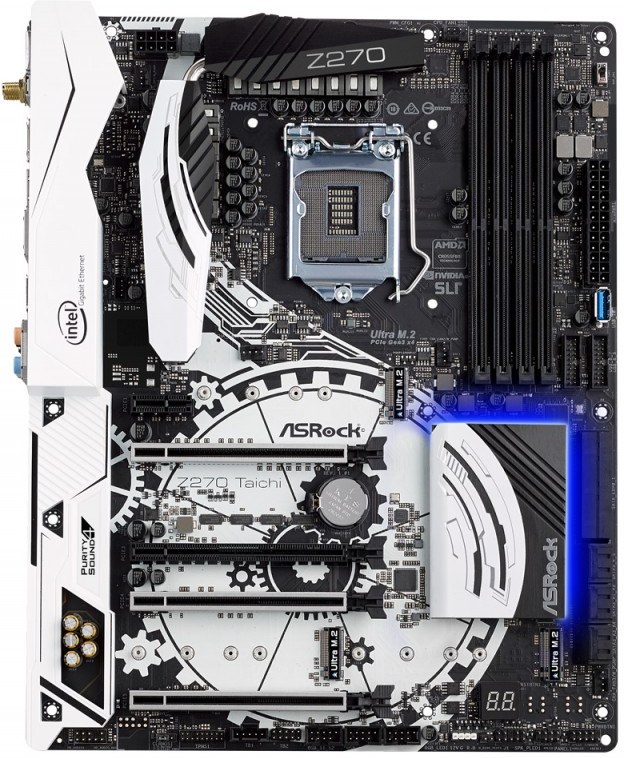

ASRock Z270 Taichi

ASRock Z270 Taichi

CPU - Supports 7th and 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
- Digi Power design
- 12 Power Phase design
Chipset Intel® Z270 Chipset
Memory - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 3733+(OC)*/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400**/2133 non-ECC, un-buffered memory
Onboard Graphics Outputs - Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI s max. resolution až do 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DisplayPort 1.2 s max. resolution až do 4K x 2K (4096x2304) @ 60Hz
Maximum shared memory of 1024MB
Multi-GPU Support Supports Nvidia SLI & AMD® CrossFireX™ Technology
PCI Slots - 4 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*
Supports NVMe SSD as boot disks
- 1 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug*
M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.
If M2_3 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
- 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 2 x SATA Express 10 Gb/s Connectors**
** Support to be announced
- 3 x Ultra M.2 Sockets, support type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module až do Gen3 x4 (32 Gb/s)***
*** Supports Intel® OptaneTM Technology
*** Supports NVMe SSD as boot disks
*** Supports ASRock U.2 Kit

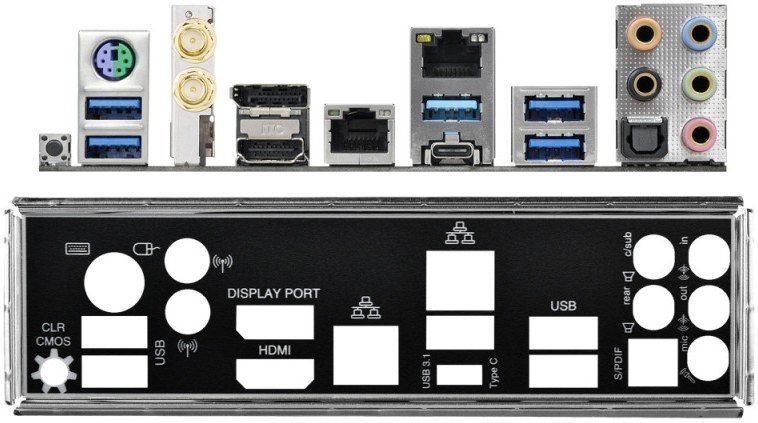

USB Rear Panel:
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Type-A Port (10 Gb/s) (ASMedia ASM2142) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM2142) (Supports ESD Protection (ASRock Full Spike Protection))
- 4 x USB 3.0 Ports (Intel® Z270) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x RJ-45 LAN Ports s LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Audio - 7.1 CH HD Audio s Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity SoundTM 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC s Differential Amplifier
- TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports až do 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Front Out port
- Individual PCB Layers for R/L Audio Channel
- AURA RGB LED
- Gold Audio Jacks
- 15i Gold Audio Connector
- Supports DTS Connect
LAN Intel® I219-V Gigabit LAN
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Warranty Three Year Manufacturer Warranty
