Super Silent series zdroj 550W v2.2 s velmi tichým 12cm ventilátorem a nízkou spotřebou (standby mode 1W)
Power supply type Super Silent Series ATX standard ATX V2.2 Connectors 20+4 pin mainboard 1x 45cm 4+4 pin mainboard 12V (8 pin EPS) 1x 45cm PCI-Express 1x PCI-Express 6+2 pin 45cm SATA 4 (2x 45/2x 60cm) PATA 4 (2x 45/2x 60cm) FDD 1x 75cm Mark of conformity CE / TÜV Fan 120mm PFC passive Dimension h x w x d 85 x 150 x 140mm Weight (retail) 2,226kg Power rating 550W +3,3V 33A +5V 28A +12V1 16A +12V2 18A Standby consumption <1W Temperature control for case fan yes
Characteristics: 550W
120mm fan
1x PCI-Express V2.0 6+2 pin connector
Incl. PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
Security circuitry OCP, OVP, UVP, SCP, OPP OCP - Overcurrent protection OVP - Overvoltage protection UVP - Undervoltage protection SCP - Short circuit protection OPP - Overpower (overload) protection
Stránky o produkte LC Power LC6550-v2.2 550W/120mm/Black Silent:
Stránka používa cookies pre zaistenie funkčnosti, meranie a prispôsobenie obsahu. Súhlasom povolíte používanie cookies alebo môžete upraviť nastavenie cookies podľa svojích preferencií.
Popis produktu

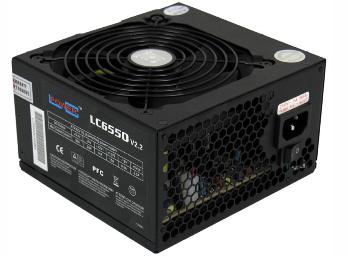

LC Power LC6550-v2.2 550W/120mm/Black Silent
Super Silent series zdroj 550W v2.2 s velmi tichým 12cm ventilátorem a nízkou spotřebou (standby mode 1W)Power supply type Super Silent Series
ATX standard ATX V2.2
Connectors
20+4 pin mainboard 1x 45cm
4+4 pin mainboard 12V (8 pin EPS) 1x 45cm
PCI-Express 1x PCI-Express 6+2 pin 45cm
SATA 4 (2x 45/2x 60cm)
PATA 4 (2x 45/2x 60cm)
FDD 1x 75cm
Mark of conformity CE / TÜV
Fan 120mm
PFC passive
Dimension h x w x d 85 x 150 x 140mm
Weight (retail) 2,226kg
Power rating 550W
+3,3V 33A
+5V 28A
+12V1 16A
+12V2 18A
Standby consumption <1W
Temperature control for case fan yes
Characteristics:
550W
120mm fan
1x PCI-Express V2.0 6+2 pin connector
Incl. PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
Security circuitry OCP, OVP, UVP, SCP, OPP
OCP - Overcurrent protection
OVP - Overvoltage protection
UVP - Undervoltage protection
SCP - Short circuit protection
OPP - Overpower (overload) protection
http://www.lc-power.com/
